skewElementElementElement functions can be customized with set and show rules.
Element
Element functions can be customized with
set and show rules.Skews content.
Skews an element in horizontal and/or vertical direction. The layout will
act as if the element was not skewed unless you specify reflow: true.
Example
#skew(ax: -12deg)[
This is some fake italic text.
]
ParameterParameterParameters are input values for functions. Specify them in parentheses after the function name.
Parameter
Parameters are input values for functions. Specify them in parentheses after the function name.
axSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
axSettable
Settable
Settable parameters can be set using the
set rule, changing the default value used thereafter.The horizontal skewing angle.
Show example
#skew(ax: 30deg)[Skewed]
Default value:
0degaySettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
aySettable
Settable
Settable parameters can be set using the
set rule, changing the default value used thereafter.The vertical skewing angle.
Show example
#skew(ay: 30deg)[Skewed]
Default value:
0degoriginSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
originSettable
Settable
Settable parameters can be set using the
set rule, changing the default value used thereafter.The origin of the skew transformation.
The origin will stay fixed during the operation.
Show example

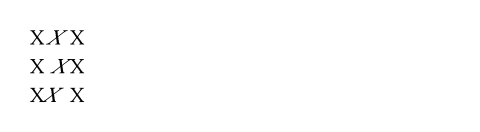

X #box(skew(ax: -30deg, origin: center + horizon)[X]) X \
X #box(skew(ax: -30deg, origin: bottom + left)[X]) X \
X #box(skew(ax: -30deg, origin: top + right)[X]) X
Default value:
center + horizonreflowSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
reflowSettable
Settable
Settable parameters can be set using the
set rule, changing the default value used thereafter.Whether the skew transformation impacts the layout.
If set to false, the skewed content will retain the bounding box of
the original content. If set to true, the bounding box will take the
transformation of the content into account and adjust the layout accordingly.
Show example

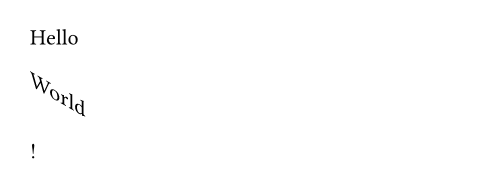

Hello #skew(ay: 30deg, reflow: true, "World")!
Default value:
falsebodyRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
bodyRequired
Required
Required parameters must be specified when calling the function.
Positional
Positional
Positional parameters can be set by specifying them in order, omitting the parameter name.
The content to skew.
